The pinnacle of reproducing technologies, the ENSPIRE PRO offers the highest resolution recording and playback paired with the highest quality acoustic pianos for those who want nothing but the best. Available models: CFX, CF4, CF6, S7X, S6X, S5X, S3X, C7X, C6X, C5X, C3X
Fully integrated high-resolution record and playback system
Recording Formats: XP MIDI, Standard MIDI, Audio WAV, Audio Sync, Video Sync
Supported File Formats: XP and Standard MIDI, MP3, WAV
500 built-in songs | Available Songs: 9,000 | Streaming radio service with 30+ channels | Streaming video service (free with radio subscription)
1024 levels of keying velocity | 1024 levels of key release velocity | 256 levels of incremental pedaling
Damper and shift pedal movement reproduction Non-Contact Optical Sensor System
Key Sensor type: Continuous grayscale Hammer Sensor type: Continuous grayscale
Damper and Shift Pedal Sensor type: Continuous grayscale Sostenuto Sensor type: On/Off detection system
Drive System Sensor type: Magnetic solenoid sensor DSP servo feedback system: AccuPlay (key, hammer, pedal and key drive system)
Auto-calibration and real-time auto-adjusting playback Quiet Mode and SILENT Mode with motorized muting system
16 playable digital voices (binaural CFX Concert Grand for headphones) 480 ensemble voices with 12 Drum Kits
256-note polyphony Compatible storage media: USB Flash Memory (up to 128GB)
MIDI connectivity: 5-pin MIDI IN/OUT, USB TO HOST Audio connectivity: Analog audio IN x 2, analog audio OUT x 4, digital coax OUT (2CH)
Headphone connectivity: 1/8” mini stereo Data connectivity: LAN, USB TO DEVICE x 3
Integrated speakers: Yamaha MSP3 powered monitors x 2 Control integration: iOS/Android app, Mac/PC browser, MusicCast app, custom API
DC7XENPRO
ENSPIRE

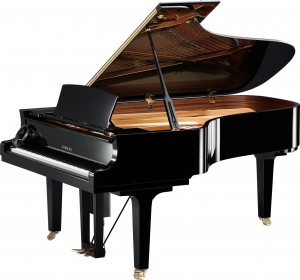

- Model: DC7XENPRO
- Size: 7’6″
- Finish Shown: Polished Ebony
- Call or visit the store closest to you for more information
- About: The pinnacle of reproducing technologies, the ENSPIRE PRO offers the highest resolution recording and playback paired with the highest quality acoustic pianos for those who want nothing but the best. DC7X ENPRO consists of a grand piano C7X.
Additional Colors Available (Prices may vary!)
DC6XENPRO
ENSPIRE

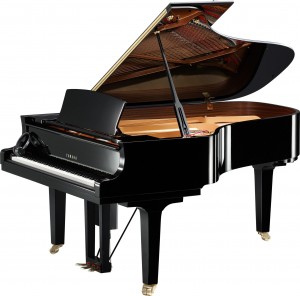

- Model: DC6XENPRO
- Size: 7′
- Finish Shown: Polished Ebony
- Call or visit the store closest to you for more information
- About: The pinnacle of reproducing technologies, the ENSPIRE PRO offers the highest resolution recording and playback paired with the highest quality acoustic pianos for those who want nothing but the best. DC6X ENPRO consists of a grand piano C6X.
Additional Colors Available (Prices may vary!)
DC5XENPRO
ENSPIRE

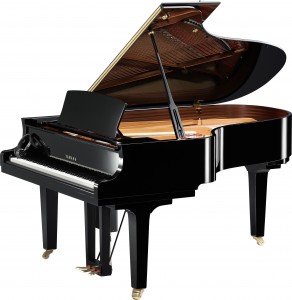

- Model: DC5XENPRO
- Size: 6’7″
- Finish Shown: Polished Ebony
- Call or visit the store closest to you for more information
- About: The pinnacle of reproducing technologies, the ENSPIRE PRO offers the highest resolution recording and playback paired with the highest quality acoustic pianos for those who want nothing but the best. DC5X ENPRO consists of a grand piano C5X.
Additional Colors Available (Prices may vary!)
DC3X ENPRO
Enspire PRO

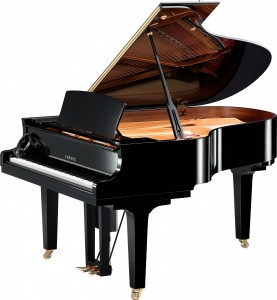

- Model: DC3X ENPRO
- Size: 6 feet 1 inch
- Finish Shown: Polished Ebony
- Call or visit the store closest to you for more information
- About: A streamlined control panel allows for simple tactile control while remaining hidden from view, providing the elegant look one would expect from a finely crafted Yamaha acoustic piano.
Additional Colors Available (Prices may vary!)

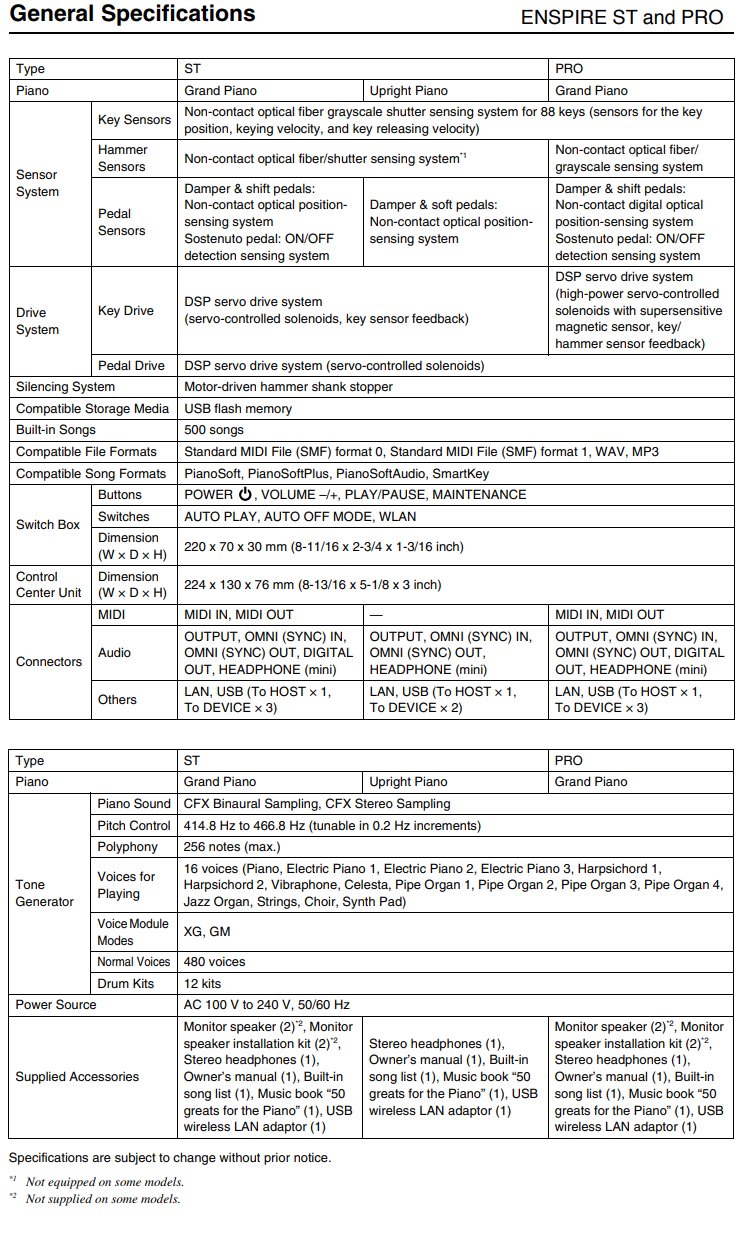

| DC3X ENPRO | DC5X ENPRO | DC6X ENPRO | DC7X ENPRO | DS7X ENPRO | DS5X ENPRO | DS3X ENPRO | DCF6 ENPRO | DCF4 ENPRO | DCFX ENPRO | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size/Weight | |||||||||||
| Dimensions | Width | 149cm (59") | 149cm (59") | 154cm (61") | 155cm (61") | 155cm (61") | 149cm (59") | 149cm (59") | 159cm (62 1/2") | 151cm (59 1/2") | 160cm (63") |
| Height | 101cm (40") | 101cm (40") | 102cm (40 1/2") | 102cm (40 1/2") | 102cm (40 1/2") | 101cm (40") | 101cm (40") | 103cm (40 1/2") | 103cm (40 1/2") | 103cm (40 1/2") | |
| Depth | 186cm (6'1") | 200cm (6'7") | 212cm (7') | 227cm (7'6") | 227cm (7'6") | 200cm (6'7") | 186cm (6'1") | 212cm (7') | 191cm (6'3") | 275cm (9') | |
| Weight | Weight | 348kg (766lbs) | 378kg (832lbs) | 433kg (953lbs) | 443kg (975lbs) | 438kg (964lbs) | 378kg (832lbs) | 358kg (788lbs) | 437kg (961Ibs) | 394kg (867Ibs) | 519kg (1,142lbs) |
| Silent System | |||||||||||
| Piano Silencing Mechanism | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | Yes (Motor-driven hammer shank stopper) | |
| Voices | |||||||||||
| Tone Generation | Piano Sound | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling | CFX Binaural Sampling / CFX Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 256 | 256 | 256 | 256 | 256 | 256 | 256 | 256 | 256 | 256 |
| Number of Voices (Playing) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | 16 (Piano, Electric Piano 1-3, Harpsichord 1 & 2, Vibraphone, Celesta, Pipe Organ 1-4, Jazz Organ, Strings, Choir, Synth Pad) | |
| Number of Voices (Playback) | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | 480 XG Voices & 12 Drum Kits | |
| Compatibility | XG | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| GM | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Songs | |||||||||||
| Number of Built-in Songs | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | 500 (Pop, Jazz, Classical, Smart Key etc. 380 piano solo songs (PianoSoft Solo), 72 songs with instrumental accompaniments (PianoSoft Plus), and 48 songs with audio backing (PianoSoft Audio)) | |
| Compatible Data Format | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | SMF (Standard MIDI File, Format 0 & 1), MP3, WAV | |
| Compatible Song Format | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | PianoSoft, PianoSoft Plus, PianoSoft Audio, SmartKey | |
| Functions | |||||||||||
| Recording | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| Overall Controls | Tuning | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) | 414.8 HZ- 466.8 Hz (Tunable in ±0.2 Hz) |
| Storage and Connectivity | |||||||||||
| Connectivity | Headphones | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 | Mini Stereo Jack x2 |
| MIDI | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | |
| OUTPUT | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| DIGITAL OUT | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| USB TO DEVICE | x3 | x3 | x3 | x3 | x3 | x3 | x3 | x3 | x3 | x3 | |
| USB TO HOST | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| LAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| OMNI (SYNC) | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | IN/OUT | |
| Compatible Storage Media | USB Flash Memory (Optional) | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Power Supply | |||||||||||
| Power Requirements | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | AC100 V - 240 V, 50/60 Hz | |
| Accessories | |||||||||||
| Included Accessories | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | Monitor Speaker x2*, Speaker Hanger x2*, Stereo Headphone, Operation Manual, Built-in Song List, Music Book 50 Greats for the Piano, USB Wireless LAN Adaptor (UD-WL01)* | |
| Sensor/Drive | |||||||||||
| Sensor Unit | Key Sensors | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) | Non-contact Optical Fiber Grayscale Shutter Sensing System for 88 keys (Sensors for the key position, keying velocity, and key releasing velocity) |
| Hammer Sensors | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | Non-contact Optical Fiber/grayscale Sensing System | |
| Pedal Sensors | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | Damper & Shift pedal: Non-contact Digital Optical Position-sensing System, Sostenuto pedal: ON/OFF Detection Sensing System | |
| Drive Unit | Key Drive | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) | DSP Servo Drive System (High-power servo-controlled solenoids with supersensitive magnetic sensor, Key/hammer sensor feedback) |
| Pedal Drive | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | DSP Servo Drive System (Servo-controlled solenoids) | |
