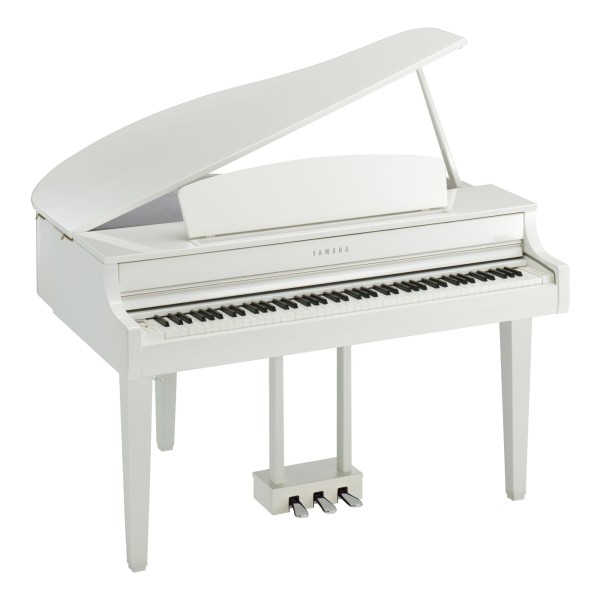

Yamaha–CLP-765GPWH
Finish: Polished White
Call for availability and more info..
About: Enjoy the luxurious appearance of a grand piano cabinet with a polished finish, as well as grand piano touch and tone.
Overview:
In addition to authentic piano touch and tone, the CLP-765GP has a grand-style cabinet that takes up less space than a traditional acoustic. It features the sounds of the flagship Yamaha CFX concert grand piano and the Bösendorfer Imperial. You will lose yourself in the sound of these binaurally-sampled grand pianos, which is a totally immersive headphone experience. And Bluetooth audio lets you stream music from portable devices wirelessly!
Get more with the Smart Pianist app
Enjoy the piano more with Smart Pianist, a dedicated app that adds a beautiful graphic interface and a variety of incredible features to your compatible Yamaha digital piano.
Get more with the Smart Pianist app
Enjoy the piano more with Smart Pianist, a dedicated app that adds a beautiful graphic interface and a variety of incredible features to your compatible Yamaha digital piano.
The Bluetooth® MIDI function* lets you conncect to Smart Pianist wirelessly.
*Featured on the CLP-785/745/795GP/765GP. Availability of Bluetooth MIDI varies by country.
The Bluetooth® MIDI function* lets you conncect to Smart Pianist wirelessly.
*Featured on the CLP-785/745/795GP/765GP. Availability of Bluetooth MIDI varies by country.
Specs:
|
CLP-795GP |
CLP-785 |
CLP-765GP |
CLP-745 |
CLP-735 |
||
|---|---|---|---|---|---|---|
| Size/Weight | ||||||
| Dimensions | Width | 56-5/16" (1,430 mm) | 57-1/2" (1,461 mm) [Polished finish: 57-3/4" (1,467 mm)] | 56-5/16" (1,430 mm) | 57-1/2" (1,461 mm) [Polished finish: 57-11/16" (1,466 mm)] | 57-1/2" (1,461 mm) [Polished finish: 57-11/16" (1,466 mm)] |
| Height | 36-11/16" (932 mm) | 40-7/16" (1,027 mm) [Polished finish: 40-1/2" (1,029 mm)] | 36-11/16" (932 mm) | 36-1/2" (927 mm) [Polished finish: 36-5/8" (930 mm)] | 36-1/2" (927 mm) [Polished finish: 36-5/8" (930 mm)] | |
| Depth | 48-11/16" (1,237 mm) | 18-3/4" (476 mm) [Polished finish: 18-3/4" (477 mm)] | 45-3/16" (1,147 mm) | 18-1/16" (459 mm) [Polished finish: 18-1/16" (459 mm)] | 18-1/16" (459 mm) [Polished finish: 18-1/16" (459 mm)] | |
| Weight | Weight | 277 lb (126 kg, 13 oz) | 185 lb (84 kg, 3 oz) [Polished finish: 191 lb (87 kg, 13 oz)] | 233 lb (106 kg, 11 oz) | 132 lb (60 kg, 4 oz) [Polished finish: 138 lb (63 kg, 14 oz)] | 125 lb (57 kg, 11 oz) [Polished finish: 132 lb (60 kg, 4 oz)] |
| Control Interface | ||||||
| Keyboard | Number of Keys | 88 | 88 | 88 | 88 | 88 |
| Type | GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement | GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement | GrandTouch-S™ keyboard: synthetic ebony and ivory key tops, escapement | GrandTouch-S™ keyboard: wooden keys (white only), synthetic ebony and ivory keytops, escapement | GrandTouch-S™ keyboard: synthetic ebony and ivory keytops, escapement | |
| Touch Sensitivity | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | Hard2/Hard1/Medium/Soft1/Soft2/Fixed | |
| 88-key Linear Graded Hammers | Yes | Yes | - | - | - | |
| Counterweight | Yes | Yes | - | - | - | |
| Pedal | Number of Pedals | 3: Damper (with half-pedal function), Sostenuto, Soft | 3: Damper (with half-pedal function), Sostenuto, Soft | 3: Damper (with half-pedal function), Sostenuto, Soft | 3: Damper (with half-pedal function), Sostenuto, Soft | 3: Damper (with half-pedal function), Sostenuto, Soft |
| Functions | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause | |
| GP Response Damper Pedal | Yes | Yes | - | - | - | |
| Display | Type | Full Dots LCD | Full Dots LCD | Full Dots LCD | Full Dots LCD | Full Dots LCD |
| Size | 128 x 64 dots | 128 x 64 dots | 128 x 64 dots | 128 x 64 dots | 128 x 64 dots | |
| Language | English, Japanese | English, Japanese | English, Japanese | English, Japanese | English, Japanese | |
| Panel | Type | Touch sensors | Touch sensors | Buttons | Buttons | Buttons |
| Language | English | English | English | English | English | |
| Cabinet | ||||||
| Key Cover | Key Cover Style | Sliding | Folding | Sliding | Sliding | Sliding |
| Music Rest | Yes | Yes | Yes | Yes | Yes | |
| Music Braces | Yes | Yes | Yes | Yes | Yes | |
| Voices | ||||||
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial | Yamaha CFX, Bösendorfer Imperial | Yamaha CFX, Bösendorfer Imperial | Yamaha CFX, Bösendorfer Imperial | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand and Bösendorfer voices only) | Yes (CFX Grand and Bösendorfer voices only) | Yes (CFX Grand and Bösendorfer voices only) | Yes (CFX Grand and Bösendorfer voices only) | Yes (CFX Grand and Bösendorfer voices only) | |
| Key-off Samples | Yes | Yes | Yes | Yes | Yes | |
| Smooth Release | Yes | Yes | Yes | Yes | Yes | |
| Virtual Resonance Modeling (VRM) | Yes | Yes | Yes | Yes | Yes | |
| Grand Expression Modeling | Yes | Yes | Yes | Yes | Yes | |
| Polyphony | Number of Polyphony (Max.) | 256 | 256 | 256 | 256 | 256 |
| Preset | Number of Voices | 53 voices + 14 Drum/SFX Kits + 480 XG voices | 53 voices + 14 Drum/SFX Kits + 480 XG voices | 38 | 38 | 38 |
| Compatibility | XG (GM), GS (for Song playback), GM2 (for Song playback) | XG (GM), GS (for Song playback), GM2 (for Song playback) | - | - | - | |
| Effects | ||||||
| Types | Reverb | 6 | 6 | 6 | 6 | 6 |
| Chorus | 3 | 3 | 3 | 3 | 3 | |
| Brilliance | 7+ User | 7+ User | 7+ User | 7+ User | 7+ User | |
| Master Effect | 12 | 12 | 12 | 12 | 12 | |
| Intelligent Acoustic Control (IAC) | Yes | Yes | Yes | Yes | Yes | |
| Stereophonic Optimizer | Yes | Yes | Yes | Yes | Yes | |
| Functions | Dual/Layers | Yes | Yes | Yes | Yes | Yes |
| Split | Yes | Yes | Yes | Yes | Yes | |
| Duo | Yes | Yes | Yes | Yes | Yes | |
| Songs | ||||||
| Preset | Number of Preset Songs | 25 voice demo songs + 50 classics + 303 lesson songs | 25 voice demo songs + 50 classics + 303 lesson songs | 21 voice demo songs + 50 classics + 303 lesson songs | 21 voice demo songs + 50 classics + 303 lesson songs | 21 voice demo songs + 50 classics + 303 lesson songs |
| Recording | Number of Songs | 250 | 250 | 250 | 250 | 250 |
| Number of Tracks | 16 | 16 | 16 | 16 | 16 | |
| Data Capacity | approx. 500 KB/Song | approx. 500 KB/Song | approx. 500 KB/Song | approx. 500 KB/Song | approx. 500 KB/Song | |
| Compatible Data Format | Playback | SMF (Format 0, Format 1) | SMF (Format 0, Format 1) | SMF (Format 0, Format 1) | SMF (Format 0, Format 1) | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) | SMF (Format 0) | SMF (Format 0) | SMF (Format 0) | SMF (Format 0) | |
| Functions | ||||||
| Piano Room | Yes | Yes | Yes | Yes | Yes | |
| USB Audio Recorder | Playback | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) |
| Recording | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) | |
| Overall Controls | Metronome | Yes | Yes | Yes | Yes | Yes |
| Tempo Range | 5 - 500 | 5 - 500 | 5 - 500 | 5 - 500 | 5 - 500 | |
| Transpose | -12 - 0 - +12 | -12 - 0 - +12 | -12 - 0 - +12 | -12 - 0 - +12 | -12 - 0 - +12 | |
| Tuning | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) | |
| Scale Type | 7 types | 7 types | 7 types | 7 types | 7 types | |
| Rhythm | 20 | 20 | 20 | 20 | 20 | |
| Bluetooth | Audio/MIDI (varies by country) | Audio/MIDI (varies by country) | Audio/MIDI (varies by country) | Audio/MIDI (varies by country) | - | |
| Storage and Connectivity | ||||||
| Storage | Internal Memory | Total maximum size approx. 1.4 MB | Total maximum size approx. 1.4 MB | Total maximum size approx. 1.4 MB | Total maximum size approx. 1.4 MB | Total maximum size approx. 1.4 MB |
| External Drives | USB flash drive | USB flash drive | USB flash drive | USB flash drive | USB flash drive | |
| Connectivity | Headphones | Standard stereo phone jack (x 2) | Standard stereo phone jack (x 2) | Standard stereo phone jack (x 2) | Standard stereo phone jack (x 2) | Standard stereo phone jack (x 2) |
| MIDI | [IN] [OUT] [THRU] | [IN] [OUT] [THRU] | [IN] [OUT] [THRU] | [IN] [OUT] [THRU] | [IN] [OUT] [THRU] | |
| AUX IN | Stereo Mini | Stereo Mini | Stereo Mini | Stereo Mini | Stereo Mini | |
| AUX OUT | [L/L+R] [R] | [L/L+R] [R] | [L/L+R] [R] | [L/L+R] [R] | [L/L+R] [R] | |
| AUX Pedal | Yes | Yes | - | - | - | |
| USB TO DEVICE | Yes | Yes | Yes | Yes | Yes | |
| USB TO HOST | Yes | Yes | Yes | Yes | Yes | |
| DC IN | 24 V | 24 V | 24 V | 24 V | 16 V | |
| Amplifiers and Speakers | ||||||
| Amplifiers | (50 W + 50 W + 50 W) x 2 | (50 W + 50 W + 50 W) x 2 | (50 W + 42 W) x 2 | (50 W + 50 W) x 2 | 30 W x 2 | |
| Speakers | (16 cm + 8 cm + 2.5 cm (dome) + transducer) x 2, Spruce Cone Speaker | (16 cm + 8 cm + 2.5 cm (dome) + transducer) x 2, Spruce Cone Speaker | (16 cm + 5 cm) x 2 | (16 cm + 8 cm) x 2 | 16 cm x 2 | |
| Power Supply | ||||||
| Power Consumption | 60 W (When using PA-500 AC adaptor) | 60 W (When using PA-500 AC adaptor) | 30 W (When using PA-500 AC adaptor) | 40 W (When using PA-500 AC adaptor) | 18 W (When using PA-300C AC adaptor) | |
| Auto Power Off | Yes | Yes | Yes | Yes | Yes | |
| Power Supply | Adaptors | PA-500 | PA-500 | PA-500 | PA-500 | PA-300C |
| Accessories | ||||||
| Accessories | Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area | Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area | Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area | Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area | Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-300C *varies by area | |
Improved From Previous Model:
CLP-665GP
- Updated CFX Grand and Bösendorfer Samples
- Update Binaural Sampling
- Grand Expression Modeling
- Grandtouch-S™ Keyboard
- 2 Fortepiano Voices
- 38 Voices (vs 36)
Step Ups From Lower Model:
CLP-735
- Grand Piano Style Cabinet and Speakers
- Built-in Bluetooth Audio / MIDI
Step Ups To Higher Model:
CLP-795GP
- Grandtouch™ keyboard with key counterweights and wooden white keys (785GP to 795GP only)
- Grand Acoustic Imaging (785GP to 795GP only)
- 4 Fortepiano Voices (785GP to 795GP only)
- GP Response Damper Pedal (785GP to 795GP only)
- Speaker Box (785GP to 795GP only)
- Touch Sensor Control Panel (785GP to 795GP only)
- 53 Voices + 14 Drum/ SFX Kits + 480 XG Voices
Enjoy the luxurious appearance of a grand piano cabinet with a polished finish, as well as grand piano touch and tone.
