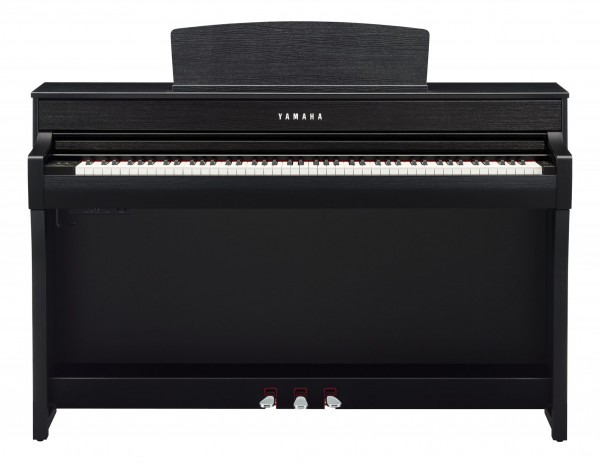

Yamaha–CLP-745

Available Finish: Black

Price Range: MSRP $ 3999

About: Powerful 2-way speakers, Bluetooth® Audio functionality, and a superb GrandTouch-S keyboard with wooden keys offer unprecedented performance capability to pianists of all abilities.

Overview:

The CLP-745 is the mid-range Clavinova CLP offering powerful sound and a superb Natural Wood (NWX) keyboard action. It features the sounds of the flagship Yamaha CFX concert grand piano and the Bösendorfer Imperial that sound pristine both with headphones (binaural sampling) and without (VRM). Bluetooth audio lets you stream music from your portable smart devices wirelessly! Traditional on the outside but modern inside, the CLP-745 is a great ins

clp-795gp

CLP-795GP

CLP-785

CLP-765GP

CLP-745

CLP-735

Size/Weight
Dimensions Width 56-5/16" (1,430 mm) 57-1/2" (1,461 mm) [Polished finish: 57-3/4" (1,467 mm)] 56-5/16" (1,430 mm) 57-1/2" (1,461 mm) [Polished finish: 57-11/16" (1,466 mm)] 57-1/2" (1,461 mm) [Polished finish: 57-11/16" (1,466 mm)]
Height 36-11/16" (932 mm) 40-7/16" (1,027 mm) [Polished finish: 40-1/2" (1,029 mm)] 36-11/16" (932 mm) 36-1/2" (927 mm) [Polished finish: 36-5/8" (930 mm)] 36-1/2" (927 mm) [Polished finish: 36-5/8" (930 mm)]
Depth 48-11/16" (1,237 mm) 18-3/4" (476 mm) [Polished finish: 18-3/4" (477 mm)] 45-3/16" (1,147 mm) 18-1/16" (459 mm) [Polished finish: 18-1/16" (459 mm)] 18-1/16" (459 mm) [Polished finish: 18-1/16" (459 mm)]
Weight Weight 277 lb (126 kg, 13 oz) 185 lb (84 kg, 3 oz) [Polished finish: 191 lb (87 kg, 13 oz)] 233 lb (106 kg, 11 oz) 132 lb (60 kg, 4 oz) [Polished finish: 138 lb (63 kg, 14 oz)] 125 lb (57 kg, 11 oz) [Polished finish: 132 lb (60 kg, 4 oz)]
Control Interface
Keyboard Number of Keys 88 88 88 88 88
Type GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement GrandTouch-S™ keyboard: synthetic ebony and ivory key tops, escapement GrandTouch-S™ keyboard: wooden keys (white only), synthetic ebony and ivory keytops, escapement GrandTouch-S™ keyboard: synthetic ebony and ivory keytops, escapement
Touch Sensitivity Hard2/Hard1/Medium/Soft1/Soft2/Fixed Hard2/Hard1/Medium/Soft1/Soft2/Fixed Hard2/Hard1/Medium/Soft1/Soft2/Fixed Hard2/Hard1/Medium/Soft1/Soft2/Fixed Hard2/Hard1/Medium/Soft1/Soft2/Fixed
88-key Linear Graded Hammers Yes Yes - - -
Counterweight Yes Yes - - -
Pedal Number of Pedals 3: Damper (with half-pedal function), Sostenuto, Soft 3: Damper (with half-pedal function), Sostenuto, Soft 3: Damper (with half-pedal function), Sostenuto, Soft 3: Damper (with half-pedal function), Sostenuto, Soft 3: Damper (with half-pedal function), Sostenuto, Soft
Functions Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause
GP Response Damper Pedal Yes Yes - - -
Display Type Full Dots LCD Full Dots LCD Full Dots LCD Full Dots LCD Full Dots LCD
Size 128 x 64 dots 128 x 64 dots 128 x 64 dots 128 x 64 dots 128 x 64 dots
Language English, Japanese English, Japanese English, Japanese English, Japanese English, Japanese
Panel Type Touch sensors Touch sensors Buttons Buttons Buttons
Language English English English English English
Cabinet
Key Cover Key Cover Style Sliding Folding Sliding Sliding Sliding
Music Rest Yes Yes Yes Yes Yes
Music Braces Yes Yes Yes Yes Yes
Voices
Tone Generation Piano Sound Yamaha CFX, Bösendorfer Imperial Yamaha CFX, Bösendorfer Imperial Yamaha CFX, Bösendorfer Imperial Yamaha CFX, Bösendorfer Imperial Yamaha CFX, Bösendorfer Imperial
Binaural Sampling Yes (CFX Grand and Bösendorfer voices only) Yes (CFX Grand and Bösendorfer voices only) Yes (CFX Grand and Bösendorfer voices only) Yes (CFX Grand and Bösendorfer voices only) Yes (CFX Grand and Bösendorfer voices only)
Key-off Samples Yes Yes Yes Yes Yes
Smooth Release Yes Yes Yes Yes Yes
Virtual Resonance Modeling (VRM) Yes Yes Yes Yes Yes
Grand Expression Modeling Yes Yes Yes Yes Yes
Polyphony Number of Polyphony (Max.) 256 256 256 256 256
Preset Number of Voices 53 voices + 14 Drum/SFX Kits + 480 XG voices 53 voices + 14 Drum/SFX Kits + 480 XG voices 38 38 38
Compatibility XG (GM), GS (for Song playback), GM2 (for Song playback) XG (GM), GS (for Song playback), GM2 (for Song playback) - - -
Effects
Types Reverb 6 6 6 6 6
Chorus 3 3 3 3 3
Brilliance 7+ User 7+ User 7+ User 7+ User 7+ User
Master Effect 12 12 12 12 12
Intelligent Acoustic Control (IAC) Yes Yes Yes Yes Yes
Stereophonic Optimizer Yes Yes Yes Yes Yes
Functions Dual/Layers Yes Yes Yes Yes Yes
Split Yes Yes Yes Yes Yes
Duo Yes Yes Yes Yes Yes
Songs
Preset Number of Preset Songs 25 voice demo songs + 50 classics + 303 lesson songs 25 voice demo songs + 50 classics + 303 lesson songs 21 voice demo songs + 50 classics + 303 lesson songs 21 voice demo songs + 50 classics + 303 lesson songs 21 voice demo songs + 50 classics + 303 lesson songs
Recording Number of Songs 250 250 250 250 250
Number of Tracks 16 16 16 16 16
Data Capacity approx. 500 KB/Song approx. 500 KB/Song approx. 500 KB/Song approx. 500 KB/Song approx. 500 KB/Song
Compatible Data Format Playback SMF (Format 0, Format 1) SMF (Format 0, Format 1) SMF (Format 0, Format 1) SMF (Format 0, Format 1) SMF (Format 0, Format 1)
Recording SMF (Format 0) SMF (Format 0) SMF (Format 0) SMF (Format 0) SMF (Format 0)
Functions
Piano Room Yes Yes Yes Yes Yes
USB Audio Recorder Playback .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
Recording .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo) .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
Overall Controls Metronome Yes Yes Yes Yes Yes
Tempo Range 5 - 500 5 - 500 5 - 500 5 - 500 5 - 500
Transpose -12 - 0 - +12 -12 - 0 - +12 -12 - 0 - +12 -12 - 0 - +12 -12 - 0 - +12
Tuning 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
Scale Type 7 types 7 types 7 types 7 types 7 types
Rhythm 20 20 20 20 20
Bluetooth Audio/MIDI (varies by country) Audio/MIDI (varies by country) Audio/MIDI (varies by country) Audio/MIDI (varies by country) -
Storage and Connectivity
Storage Internal Memory Total maximum size approx. 1.4 MB Total maximum size approx. 1.4 MB Total maximum size approx. 1.4 MB Total maximum size approx. 1.4 MB Total maximum size approx. 1.4 MB
External Drives USB flash drive USB flash drive USB flash drive USB flash drive USB flash drive
Connectivity Headphones Standard stereo phone jack (x 2) Standard stereo phone jack (x 2) Standard stereo phone jack (x 2) Standard stereo phone jack (x 2) Standard stereo phone jack (x 2)
MIDI [IN] [OUT] [THRU] [IN] [OUT] [THRU] [IN] [OUT] [THRU] [IN] [OUT] [THRU] [IN] [OUT] [THRU]
AUX IN Stereo Mini Stereo Mini Stereo Mini Stereo Mini Stereo Mini
AUX OUT [L/L+R] [R] [L/L+R] [R] [L/L+R] [R] [L/L+R] [R] [L/L+R] [R]
AUX Pedal Yes Yes - - -
USB TO DEVICE Yes Yes Yes Yes Yes
USB TO HOST Yes Yes Yes Yes Yes
DC IN 24 V 24 V 24 V 24 V 16 V
Amplifiers and Speakers
Amplifiers (50 W + 50 W + 50 W) x 2 (50 W + 50 W + 50 W) x 2 (50 W + 42 W) x 2 (50 W + 50 W) x 2 30 W x 2
Speakers (16 cm + 8 cm + 2.5 cm (dome) + transducer) x 2, Spruce Cone Speaker (16 cm + 8 cm + 2.5 cm (dome) + transducer) x 2, Spruce Cone Speaker (16 cm + 5 cm) x 2 (16 cm + 8 cm) x 2 16 cm x 2
Power Supply
Power Consumption 60 W (When using PA-500 AC adaptor) 60 W (When using PA-500 AC adaptor) 30 W (When using PA-500 AC adaptor) 40 W (When using PA-500 AC adaptor) 18 W (When using PA-300C AC adaptor)
Auto Power Off Yes Yes Yes Yes Yes
Power Supply Adaptors PA-500 PA-500 PA-500 PA-500 PA-300C
Accessories
Accessories Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area Owner's Manual, "50 Classical Music Masterpieces" Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-300C *varies by area

Improved From Previous Model: CLP-645

  • Grand Expression Modeling
  • Updated CFX and Bösendorfer Samples
  • Updated Binaural Sampling
  • Built In Bluetooth MIDI
  • 2 Fortepiano Voices
  • 38 Voices (vs. 36 Voices)
  • 21 Voice Demo Songs + 50 Classics + 303 Lesson Songs



Step Ups From Lower Model:
CLP-735

  • Wooden White Keys
  • Built-In Bluetooth Audio and MIDI
  • (50 W + 50 W) x 2 Amplifiers vs 30 W x 2



Step Ups To Higher Model:
CLP-785

  • Grandtouch™ Keyboard with key counterweights
  • GP Response Damper Pedal
  • Grand Acoustic Imaging
  • 4 Fortepiano Voices
  • 53 Voices + 14 Drum/SFX kits +480 XG Voices (vs. 38)
  • Touch Sensor Control Panel

The CLP-745 is the mid-range Clavinova CLP offering powerful sound and a superb Natural Wood (NWX) keyboard action. It features the sounds of the flagship Yamaha CFX concert grand piano and the Bösendorfer Imperial that sound pristine both with headphones (binaural sampling) and without (VRM). Bluetooth audio lets you stream music from your portable smart devices wirelessly! Traditional on the outside but modern inside, the CLP-745 is a great ins
